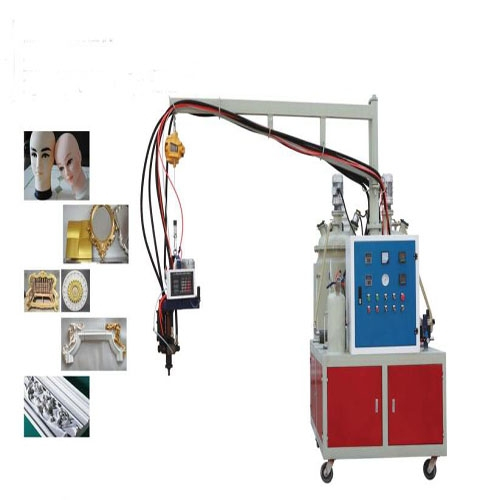

Mix head :
Mixing by agitator for better mixing performance
New designed pouring valve for precision dosing
Auto-cleaning function mix head
Metering Unit
High precision ,low speed gear pump
Variable output adjusted by VFD
Shaft seal with coupling and DOP
Components storage and temperature conditioning
Jack tanks with visual level tube
Digital pressure gauge for control and visualization of pressure with Max.Alarm Value
Electrical resistance heater for temperature conditioning
Low speed agitator for even temperature distribution
Chiller for option
Electrical Control System
Fully controlled by SCM(single Chip Microcomputer)
OP7 operator panel is simple that user can set machine parameter ,status showing pouring time ,temperature control and cleaning control ,etc
Alarm function with acoustic warning
Output:(1:1)g/s
Model | Min | Max | Tank L | Power KW |
Cnmc-R5 | 16.6 | 66.6 | 60 | 8 |
Cnmc-R5 | 50 | 250 | 120 | 9 |
Cnmc-R5 | 100 | 600 | 120 | 12 |
Cnmc-R5 | 250 | 1000 | 200 | 13 |
Cnmc-R5 | 666.6 | 2000 | 200 | 15 |
