CNMC-E10HP
CNMC

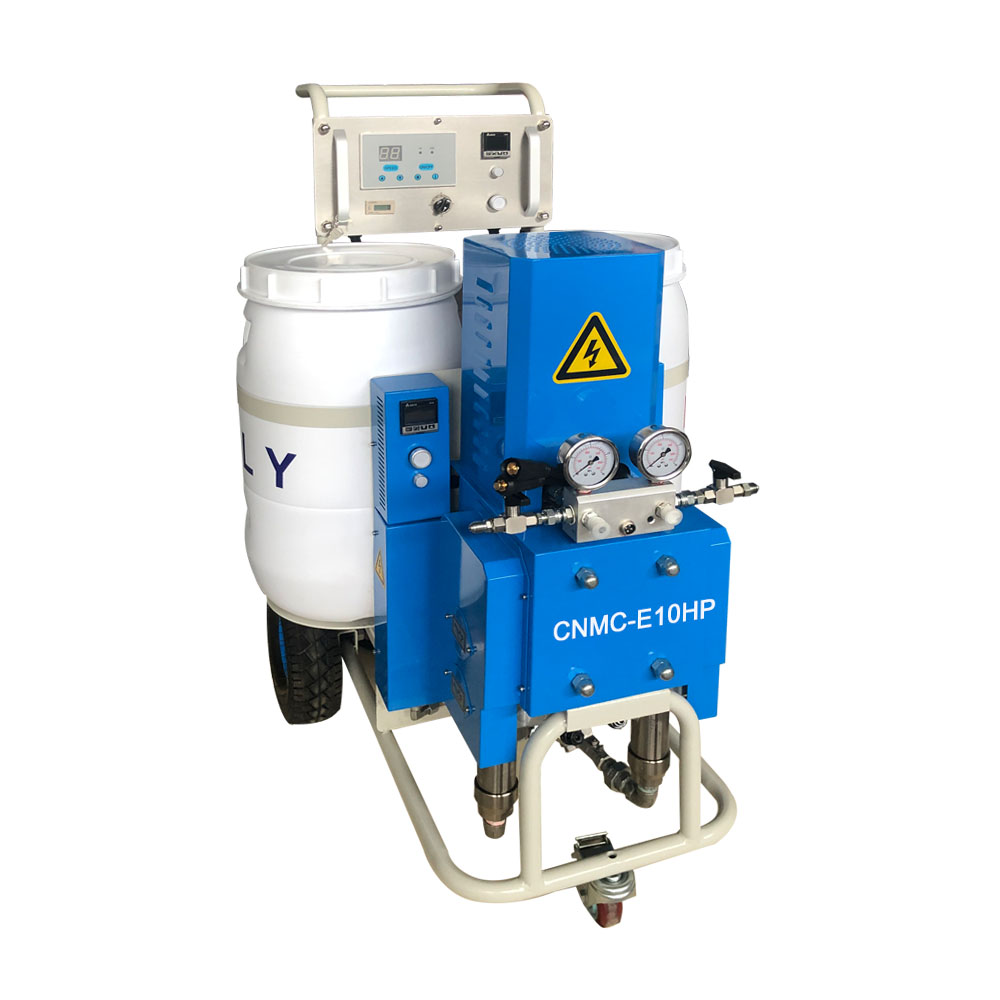

CNMC-E10HP Eectric Driven Polyurethane Spray Foam Machine
E10HP is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The E10HP sprayers are ideal for polyurethane spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10HP is a natural complement to any proportioning equipment line-up.
Small size is ideal for on-site portability and hard-to-reach areas
One-person operation saves time and money
Use as an add-on to your existing spray business
Versatile - switch from cold spray to hot spray to foam
Saves 30% on material costs compared to disposable foam systems
Electric power is low draw and plugs into standard outlets
Intuitive start, stop and digital temperature display with single knob operation
Pressure balance valves give you quick and easy balancing of system pressures
Technical specifications
Power source:230v/110v single phase,230v /400v 3 phase ,50/60HZ
Whole power:3.5KW
Heater power:1.5kw each side
Driven mode:Electric
Air source:1kw air compressor or less
Chemical output:2-12kg/min
Maximum output pressure:15MPa
A and B chemical output ratio:1:1
Max hose support :15 meters
Machine size :730*653*1170mm
Drum size :30L each
Weight:140kg
