Beautiful appearance, stable hydraulic drive, working pressure higher than 500KPa.
Primary Heating System
The primary heating system consists of two separate independent block heaters with no seals.
Independent Hose Heating System
Designed with two 4000W isolation transformers, unit allows the individual heating of each component hose up to 150m.
Double Acting Piston Proportioning Pumps
Each pump is individually driven by a hydraulic cylinder to deliver the adequate volume of each component in order to achieve the desired mixing ratio.
The Recirculation System allows to heat the products automatically, with no need to switch on the machine, reducing the time of preparation prior to start spraying.
Central Processing Unit (CPU)
The CPU´s software processes and controls all application parameters entered on the screens assuring that any alteration that may occur will be corrected while the unit continues working.

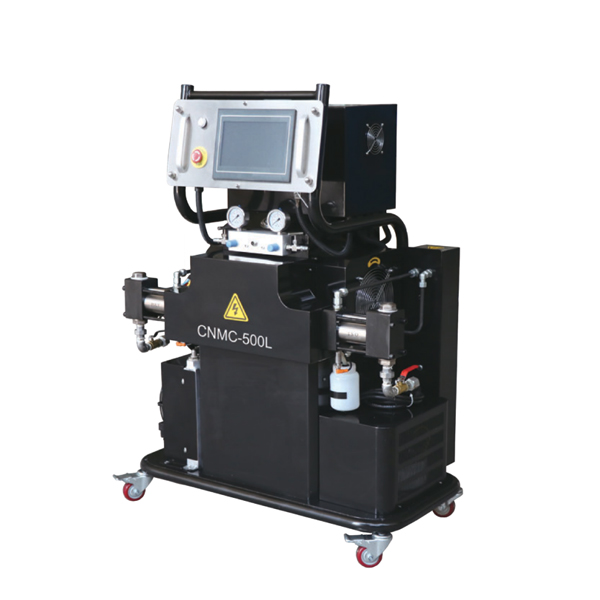

Note: For coatings that require high-pressures such like polyurea high pressure spray CNMC-500L applies up to 24kg max per minute ,max reach 35mpa.
