German mortar spraying machine

German mortar spraying machine Parameter

Vertical conveying distance: 20m

Horizontal conveying distance: 30m

Bare machine weight: 280kg/300kg after packaging

Motor power: main motor 7.5kw/air pump motor 2.2kw

Maximum mortar ratio: 1:3

Mortar conveying volume: 1.5m³

Working efficiency: 100²/h

Hopper volume: 80L

Overall dimensions: 1800×600×1100mm (length, width and height)

Packaging dimensions: 1870×680×1000mm (length, width and height)

Inner diameter of material pipe: 38mm

Working pressure: 5-8Map

Working voltage: 380v

Maximum passing particles: 7mm

Scope of application: mortar putty paint, etc.

Factory standard: 10m material pipe, 10m air pipe, 1 spray gun and 5 nozzles

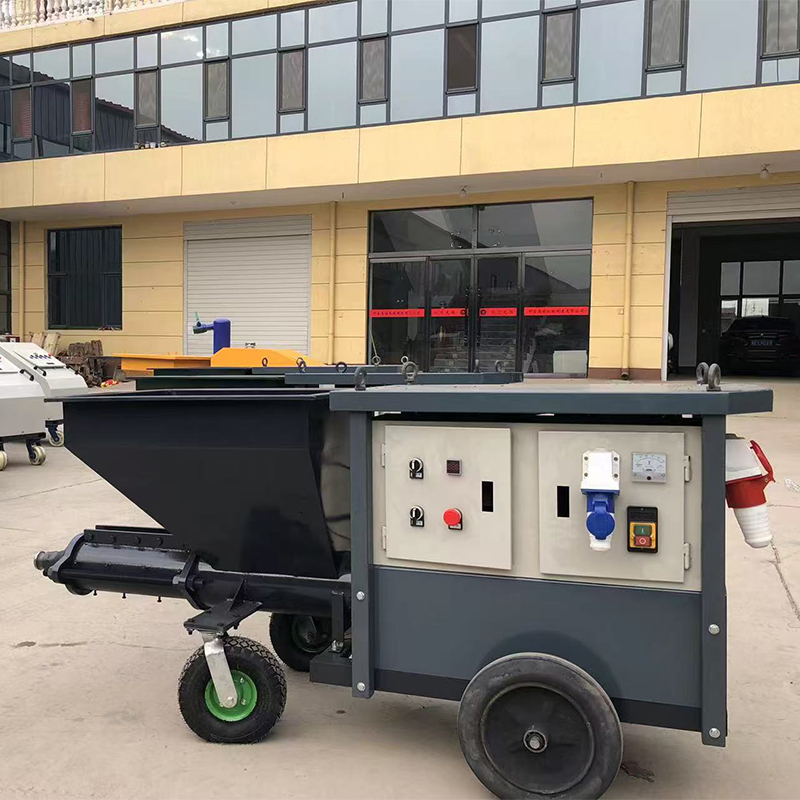

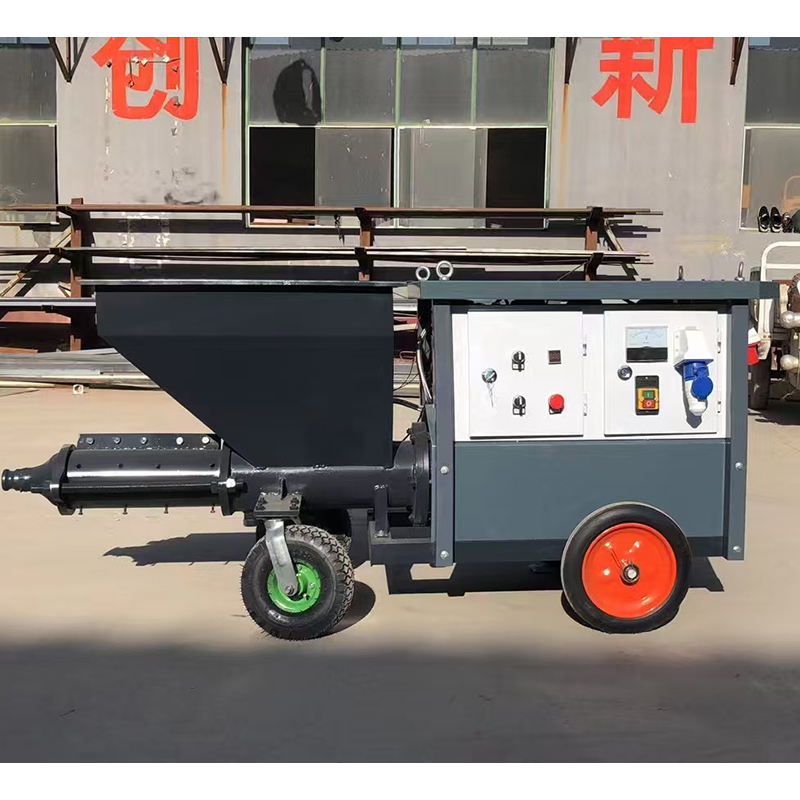

German mortar spraying machine Images
