CNMC200 POLYURETHANE SPRAYING MACHINE SENT TO SPAIN

Views:14     Author:Site Editor     Publish Time: 2020-11-13      Origin:Site

On November 13, 2020, CNMC200 polyurethane spraying machine was sent to Spain


CNMC200

CNMC-200  Spray Foam Machine


Technical specifications

Power source:230v single phase 230v 3 phase ,400v 3 phase ,50/60HZ

Whole power:7.5KW

Heater power:3.6kw each side

Heating hose power:2000w/15meters

Driven mode:Pneumatic

Air source:0.5-0.8MPa≥0.9m³

Chemical output:2-12kg/min

Maximum output pressure:15MPa

A and B chemical output ratio:1:1

Max hose support :90 meters

Machine size :800*700*1150mm

Weight:200kg



The new CNMC-200 air driven proportioning unit is of an advanced and compact design. It is specially aimed at the applications of polyurethane foam in place. Its particular configuration facilities easy access to all its components, simplifies the control functions ad significantly reduces the maintenance work.


Primary Heating System

The primary heating system consists of two separate independent block heaters with no seals. Each heater heating elements that supply a total power of 7.5KW with the necessary control and safety features for the accurate and reliable performance of the system. The special design of the heaters allows for a DT of 30º C and enables it to reach application temperatures of 70º C in normal environmental conditions.


Proportioning Pumps

The system is including two positive displacement piston pumps, driven by a pneumatic motor. The proportioning pumps are manufactured from high hardness tempered aluminium and a special treatment that offers a low coefficient of friction, a high level of lubrication, and an increased level of wear resistance. The system includes a common guide system that ensures dynamic stability guaranteeing the correct alignment of the pump group and extending the life of the packing seals.


Recirculation System

Recirculation of the two components allows a faster achievement of the preset temperatures at the heaters before  starting to spray and during temporary shutdowns.


Hose Heating System

The hose heating system is designed with 2000W each 15 meters that allows the heating of up to 90m. of hose. The system

incorporates an innovative concept of heated hose in which the copper resistance is homogenously spread around the hose. This allows accurate and uniform control of the application temperature of the products.

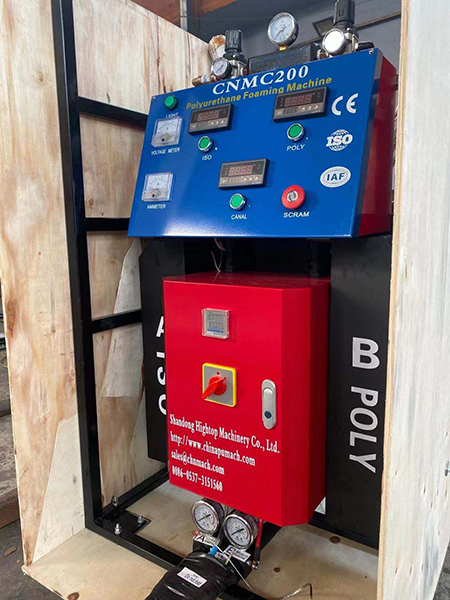

cnmc200
CNMC_200
65365bec2b3de5f2bc7f108e6a45e08


For more information on polyurethane, please continue to pay attention to the polyurethane manufacturer Hightop Machinery.
