CNMC-H Pneumatic Polyurethane Foam Sprayer

Views: 0 Author: Site Editor Publish Time: 2026-05-26 Origin: Site

The CNMC-H Pneumatic Polyurethane Foam Sprayer is a professional-grade spray equipment designed for field polyurethane foam applications. Featuring an advanced compact design with easy component access, it simplifies control functions and significantly reduces maintenance time. Built for construction insulation, wall sealing, and industrial pipeline projects, the CNMC-H delivers consistent, high-quality foam spraying performance.

Key Features

1. Primary Heating System

Dual 3000W block heaters reach 70°C application temperature with precision temperature differential (DT) control of 30°C, ensuring stable foam output even in varying ambient conditions. The unsealed design allows for rapid heat-up and reliable performance.

2. Proportioning Pumps

Two positive displacement piston pumps driven by air motors, constructed from high-hardness tempered aluminum with specialized surface treatment. Features lower friction coefficient, superior lubrication levels, and extended wear resistance. Universal guiding system ensures dynamic stability and correct alignment, prolonging packing seal life.

3. Recirculation System

Fast pre-heating circulation allows the system to reach preset temperatures quickly before spraying and during temporary shutdowns, reducing idle time and improving job-site efficiency.

4. Optional Hose Heating System

1000W per 15m heating capacity, supporting up to 90m of heated hose. Evenly distributed copper resistance wire around the hose enables precise, uniform temperature control at the spray nozzle.

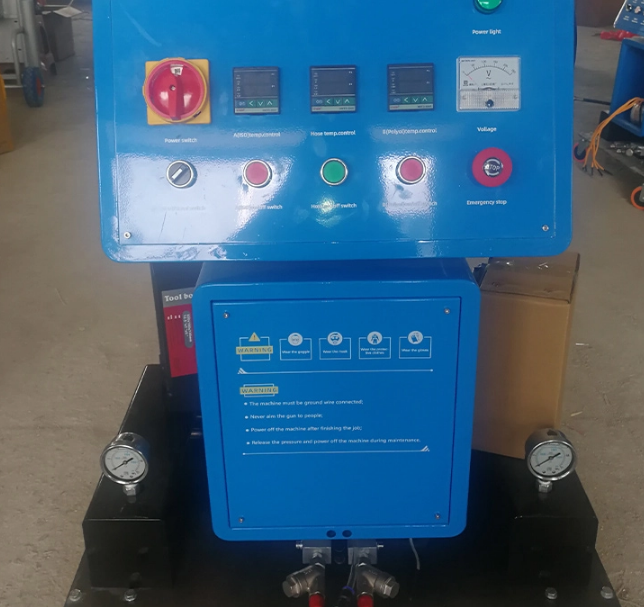

cnmc-h-pneumatic-polyurethane-foam-sprayer

CNMC-H Technical Specifications

Parameter	Value
Power Supply	230V single-phase / 230V 3-phase / 400V 3-phase, 50/60HZ
Total Power	7.5 KW
Heating Power	3 KW per side
Heating Hose Power	1000W / 15 meters
Driving Mode	Pneumatic
Gas Source	0.5-0.8 MPa ≥ 0.9 m³
Chemical Output	2-12 kg/min
Max Output Pressure	17 MPa
A/B Output Ratio	1:1
Max Hose Length	90 meters
Machine Size	800 × 700 × 1150 mm

Applications & Benefits

Building roof and wall insulation
Industrial pipeline spray coating
Cold storage and warehouse sealing
Tunnel and bridge waterproofing
Prefabricated construction components
Spray foam for voids and cavity filling

The CNMC-H polyurethane spray foam machine provides excellent thermal insulation, air sealing, and moisture resistance. Its high-pressure output ensures deep penetration and strong adhesion on various substrates including concrete, steel, and wood.
